Getting began with dwelling wind power tasks can set you again a fairly penny in case you purchase a completed product. However in case you’re a bit of bit useful and do not thoughts scrounging for supplies and getting artistic within the storage or yard, you’ll be able to construct your individual DIY wind turbine for about $30 in supplies.
Supplies Wanted to Construct Your Personal Wind Turbine

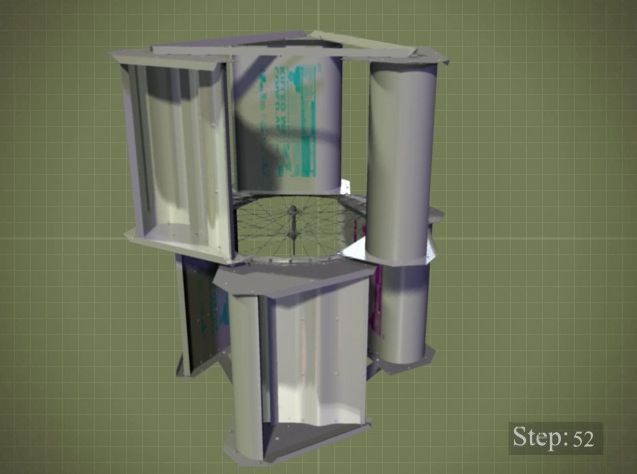

We have beforehand lined Daniel Connell’s open-source concentrated photo voltaic collector plans, however he has additionally revealed one other nice DIY renewable power challenge: A vertical axis wind turbine based mostly on the Lenz2 raise+drag design. Connell’s design requires utilizing aluminum lithographic offset printing plates to catch the wind, which he says might be obtained cheaply (or probably even free) from an offset printing firm, and quite a lot of {hardware} plus a bicycle wheel.
“The turbine makes use of the ~40% mechanically environment friendly Lenz2 raise+drag design. It’s made solely from scrap supplies apart from the bolts and pop rivets, and may price about $15-$30 for the three vane model, which might be made by one particular person in six hours with out a lot effort.”
Aside from fundamental instruments, together with a hand drill, you will want to purchase or borrow a pop riveter and a few assorted {hardware} (bolts, nuts, and washers) to assemble this system. In response to Connell’s notes, this DIY wind turbine, which might be inbuilt both a 3 vane or six vane model, has efficiently survived sustained winds of 80 km/h (three vane) and as much as 105 km/h for the six vane model.
Output and Functions
Here is a bit of clip of the vertical axis wind turbine being challenged by sturdy winds:
With a purpose to harvest the power from this wind turbine, it’s a necessity so as to add an alternator to the rotor, in addition to a way of storing the electrical energy, however it may be used merely for the mechanical rotation, reminiscent of to pump water or spin a flywheel for different functions.
Whereas there are a variety of variables that may have an effect on the output of this DIY wind turbine, together with the effectivity of the alternator used (and clearly the velocity of the wind the place it is situated), in accordance with Connell, utilizing a “50% environment friendly automobile alternator (the only and most cost-effective choice) ought to produce 158 watts of electrical energy in a 50 km/h wind, and 649 watts at 80 km/h” with this design.
[Update: In an email conversation with Connell, he stated that “a six-vane version with an efficient alternator should produce at least 135 watts of electricity in a 30 km/h wind, and 1.05 kilowatts at 60 km/h.”]
This homebrewed wind turbine is not essentially going to be powering your own home (though a sequence of those may doubtlessly be used to generate sufficient electrical energy to cost a battery financial institution for modest dwelling use), it is perhaps an awesome hands-on college challenge or homeschool exercise about wind power.
